Why the number matters more than the brand name
The badge on the door names the maker and sometimes a series, but a single wall oven design is built in many versions, with different control boards, elements, door locks and even different cavity sizes. Only the wall oven model number separates them. It opens the right use and care manual, the installation instructions with the cutout sizes, and the parts list a technician orders from.
It also decides whether a replacement will fit the cabinet. When an oven is past repair, the cutout dimensions for the old model are the starting point for choosing a new one that slides into the same opening without cabinet work.
Where to look on each kind of built-in oven

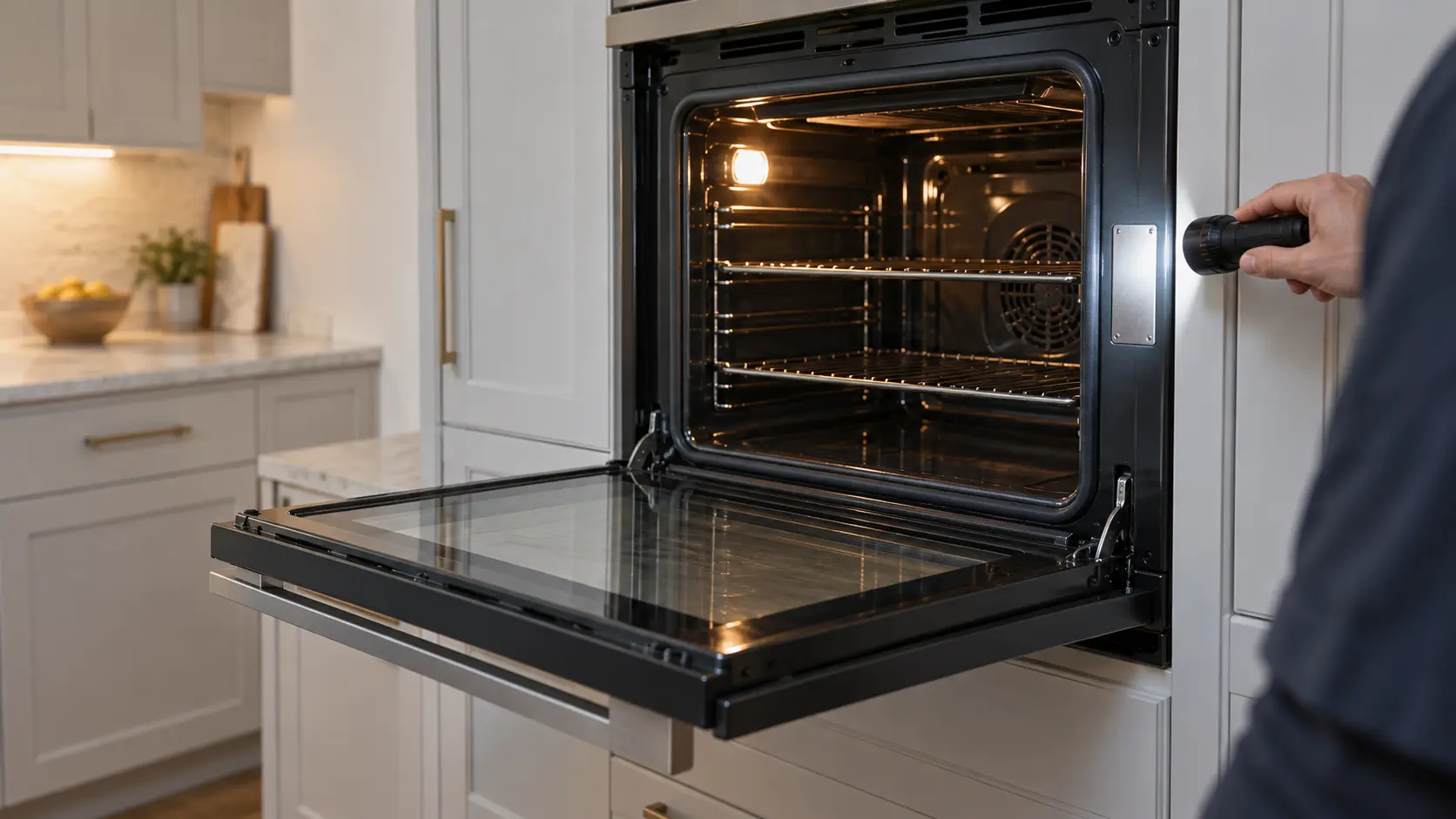

Open the door fully, pull the top rack out of the way and shine a flashlight around the face of the frame that the door closes against. The tag is a thin metal plate or a printed sticker, silver or white, with several lines of small type. The makers publish slightly different spots:
- GE: on the side trim, or on the front of the oven frame behind the door; on a double oven, on the lower oven.
- GE Monogram: on the front of the oven behind the door, or of the lower oven on a double.
- Whirlpool: along the top of the cavity opening, with the rating plate on the right mounting rail.
- Other brands: the same frame faces, the edges of the trim or the underside of the control panel above the door.
Single wall ovens

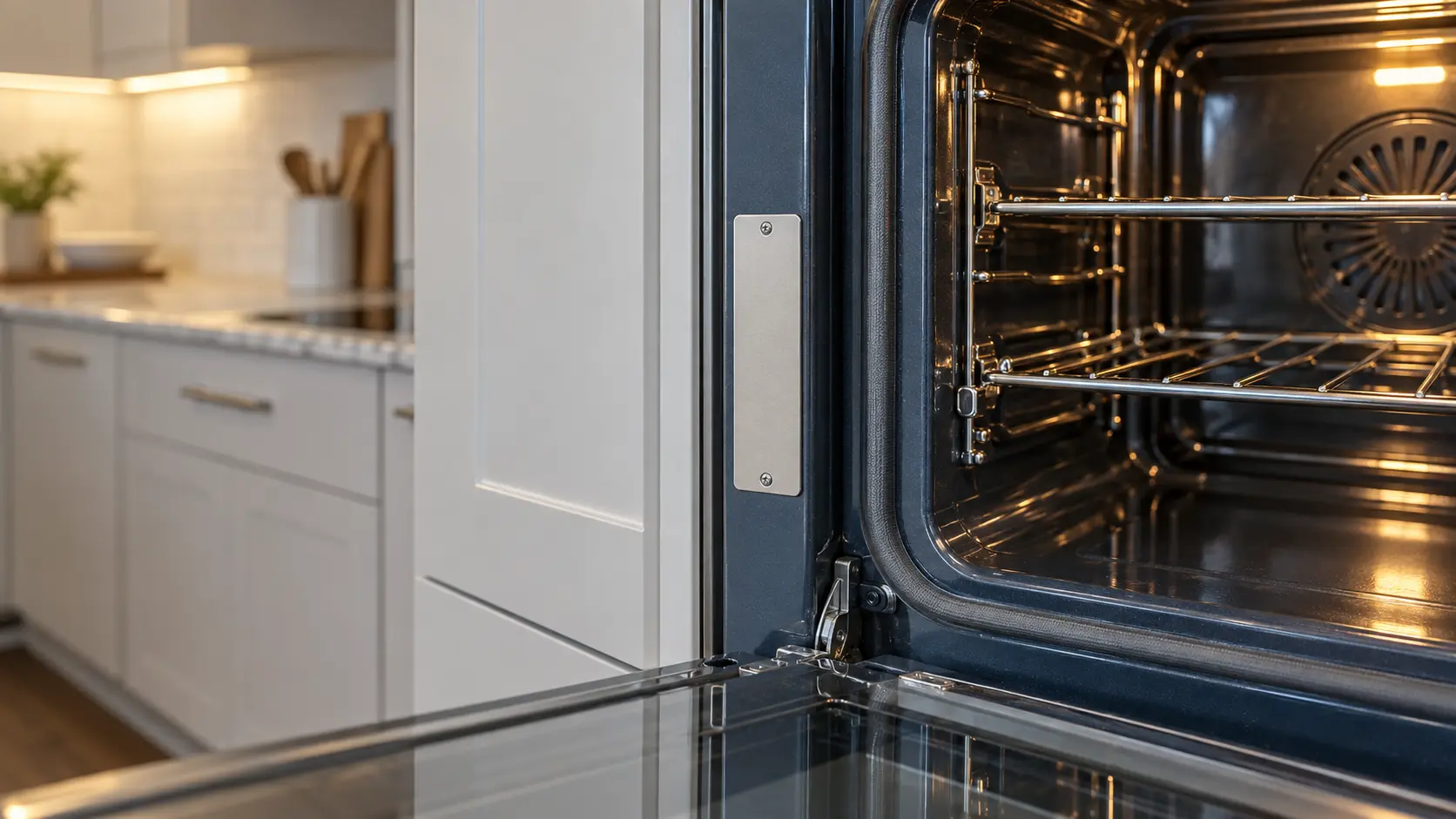

With the door open, check the left and right edges of the frame first, then the strip along the top of the opening. On ovens with a thick trim kit, the tag may sit on the side of the frame, where you have to look sideways into the gap between the trim and the door.
Double wall ovens and oven combinations
A double oven usually carries one tag for both cavities, and it is normally on the lower one. Open the lower door, not the upper. An oven paired with a built-in microwave or a warming drawer is two or three appliances in one cabinet, and each part has its own tag; Whirlpool puts a warming drawer's tag on the left side of the drawer's cabinet wall.
Steam and speed ovens
Compact steam and speed ovens follow the same idea on a smaller frame. Open the door, look around the opening and along the top strip, and on a steam oven check the area around the water tank bay as well. If the oven sits above a warming drawer or beside a second oven, make sure the tag you copy belongs to the unit that has the problem.
Source: GE Appliances — Built-in electric wall oven owner's manual (JTS3000, JKD3000) — Model and serial label on the side trim or on the front of the (lower) oven behind the door; GE Monogram — 27 and 30 inch convection wall oven owner's manual — Label on the front of the oven behind the door, or of the lower oven on double models; Whirlpool — Where is my model and serial number located? — Built-in oven: top of the oven cavity; warming drawer: left side of the cabinet wall; Whirlpool — Oven not preheating, wall oven — The model/serial rating plate is on the right mounting rail and specifies the voltage and frequency the oven needs
Reading the plate: model, serial and rating
The line to copy is marked Model, Mod. or Type. Copy the serial number below it as well: it identifies this particular oven and its build date, which matters for recalls and for parts changed partway through production. The same plate lists the voltage, often 240 and 208 volts, and the power rating in kilowatts, which is what an electrician uses to size the circuit.
Small characters are where errors creep in, and a single wrong one brings up a different oven:
- A capital O read as a zero, or a zero read as O
- The letter B and the digit 8
- The letter Z and the digit 2
- Suffix letters after a dash, which often mark the color or finish and still belong to the number
Source: Whirlpool — Oven not preheating, wall oven — The model/serial rating plate is on the right mounting rail and specifies the voltage and frequency the oven needs
When the tag has faded or burned off
Self-clean cycles run the cavity far hotter than any baking, and years of them can darken or blister a sticker near the door opening. Check the other frame faces before giving up, and try photographing the tag with the flash at an angle, which often picks up embossed characters on a metal plate that the eye misses.
If nothing is legible, the paperwork usually has it: the manual, the installation sheet taped inside a cabinet, the purchase receipt, a delivery invoice or the registration record if the oven was ever connected to the maker's app. A technician can identify an unlabeled oven from its parts, but that uses part of the visit.
Manuals, parts and recalls
With the number in hand, the maker's support site will return the owner's manual, which holds the calibration steps, the rack chart and the list of display messages for your oven. Save a copy on your phone, since the paper one tends to vanish the day it is needed.
The number is also how you check for a safety recall. The U.S. Consumer Product Safety Commission publishes recalls with the affected model numbers, and a match means following the recall remedy rather than booking a repair.
It helps outside the kitchen too. When you book a visit, give the model and serial numbers with a short note of the problem, and the technician can check which parts that build uses before leaving the shop. Keep the numbers with your home records, since an insurance claim, a move or a kitchen remodel will ask for them again.
Source: U.S. Consumer Product Safety Commission — Recalls — Searchable list of product recalls naming the affected models
